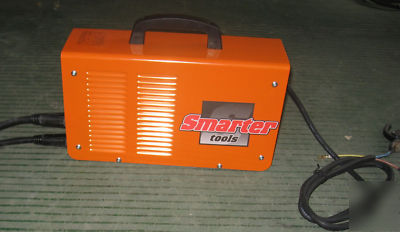

Smarter tools igbt inverter arc/stick welder 200 amp
* Advanced IGBT inverter technology
* Compact size (14" X 11" X 5")
* Light weight (under 19 pounds)
* Thermostatically-controlled fan cooling
* Features "Hot start" anti-stick technology
* Applicable for welding all ferrous metals
* Standard DINSE-style connectors
* Fast Recovery Diode (STTH6003CW): ST Microelectronics
* Fast Recovery Diode (U1560): Onsem
* IGBT(K30N60HS): Infineon Company
* Rated Duty Cycle (%): 35%@200A; 60%@150A; 100%@115A
* Welding Electrode Diameter(mm): 1.6 - 5.0 (1/16" - 3/16")
* Case Protection Degree: IP21
* Weight(kg): 8.5 (18.7 pounds)
* 200 Amp IGBT Inverter welder, with power cord (but without plug)
* Clamp-style electrode holder (stinger)
* Because of the variety of 240V plugs, none is included. You will have to add an appropriate plug to match your outlet. A 240V, 3-wire grounded outlet, like your electric dryer or stove uses, is needed.
* Items returned must be in good condition. I will inspect all returns before accepting the package. I will not accept packages that have missing parts or damage. These packages will be refused.
Visit the Manufacturer's Website for more information.
I've tested the welder out, and it produces a very stable arc. Tested with:
* 1/16" 6013 wire at 45 amps
* 3/32" 6013 wire at 75 amps
* 1/8" 7018 wire at 120 amps
I don't have any bigger wire to test it with, but I'm confident that this is a great unit.
