New opticon H16A smart phone kit laser scanner
Opticon H16A Smart Phone Kit Laser Scanner NEW
The H16 is a high-performance quad-band advanced mobile phone with an integrated scan engine, a slide-out QWERTY keypad and multiple modes of wireless communication (GSM/GPRS/EDGE, WiFi and Bluetooth) in order to meet the needs of your mobile workforce.
Signature capturing and touch operation
Microsoft Windows Mobile 5.0 drives the H16. The slide-out QWERTY keypad provides fast and easy text input and quickly hides away when not required. The 2.8-inch, color LCD display can be used for touch-screen operations such as signature capture.
The H16 has the ability to instantly rotate the screen layout when your applications require increased screen space. The H16 also helps you in dark and bad-light environments with both a screen and a keypad backlight, making the background brighter and the characters sharper.
Excel Mobile, Powerpoint Mobile, Word Mobile, Internet Explorer, ActiveSync, Internet sharing, Pocket MSN, Phone application, Opticon Scanner application, Accessories
Supports year, month, day, hour, minute, second (leap year supported)
Graphic Transflective TFT LCD with touch panel, 16-bit color with adjustable backlight
2 LEDS (red/orange/green/blue)
41 backlit keys total, QWERTY keyboard, 5-way direction keys, 1 power key, hot keys, phone keys, 2 scan keys, virtual keyboard, handwriting recognition
GSM/GPRS/EDGE, quad-band 850/900/1800/1900, GSM Class 12, EDGE Class 10
Speaker/microphone (mono), headset connector (stereo)
Lithium-Ion Polymer 4.2V 1440mAh
Talk time 4 hours, Standby time 150 hours
Enclosed power supply, separate car charging adapter
Standard battery ca. 4 hours, High-capacity battery ca. 8 hours (full charge)
R>15 mm (EAN8), R>20 mm (EAN13)
65 - 645 mm / 2.56 - 25.39 in (1.0 mm / 39 mil), 45 - 415 mm / 1.77 - 16.34 in (0.5 mm / 20 mil), 45 - 255 mm / 1.77 - 10.04 in (0.25 mm / 10 mil), 45 - 145 mm / 1.77 - 5.71 in (0.15 mm / 6 mil), 55 - 115 mm / 2.17 - 4.53 in (0.127 mm / 5 mil), at PCS 0.9 Code 39
JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Chinese Post, Korean Postal Authority code
Composite Codes, MicroPDF417, PDF417
60 x 127 x 28 mm / 2.36 x 5.00 x 1.10 in
Ca. 180 g / 6.3 oz (excl. battery)
CE, FCC, VCCI, ROHS, JIS-C-6802 Class 1, IEC 60825-1 Class 1, FDA CDRH Class I

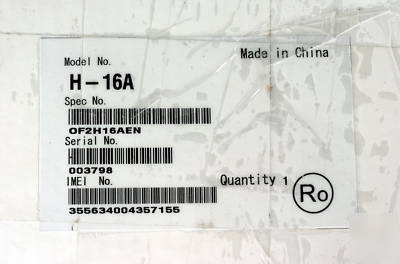

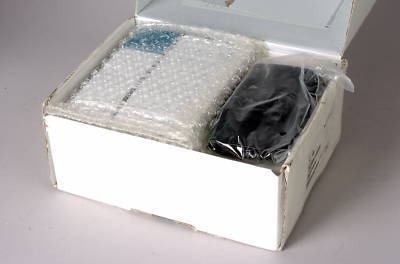

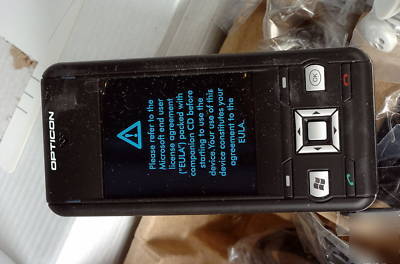

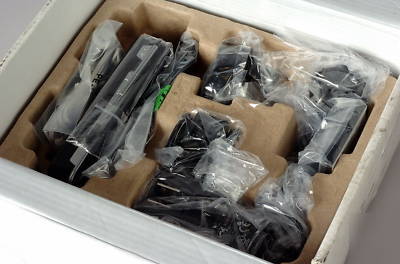

The pictures are showing the actual item you are getting.
