New honeywell Q3450C1185 pilot burner

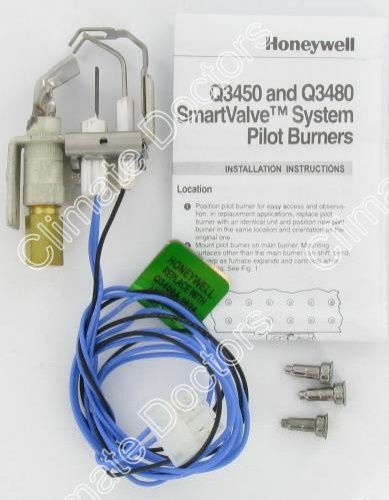

Honeywell Q3450C1185 Pilot Burner NEW
Honeywell Q3450C1185 Pilot Burner These SmartValve System pilot burners provide pilot flame ignition and sensing for SV9500/SV9600 systems. They consist if replaceable igniter-flame rod assembly, bracket assembly, pilot target, ground electrode, orifice assembly, compression fitting and spring clip. The igniter lights the pilot burner, The flame rod proves the pilot flame and the pilot flame lights the main burner.
* Used with SV9500/SV9600 SmartValve System.
* Replaceable Igniter-Flame Rod Assembly (Q3400A).
* Integral keyed plug provides quick, convenient connection of igniter and sensor to SV9500/SV9600.
* Q3450 has front or 20 degree right, left flame pattern.
* Natural and LP gas orifices available.
* Variety of target styles available.
* Variety of mounting brackets available.
Pilot Burner for natural gas with a BCR-18 orifice, left single tip style, "C" mounting bracket and primary aeration
BCR-18(0.018 in.); BCR-20 (0.020 in); BCR-22 (0.022 in); BCR-12 (0.12 in)
Approvals, Canadian Gas Association
CGA Certified: File No. 1029-ABI/CC9203
Approvals, American Gas Association
AGA Design Certified: File No. U70-24A
