> 750C degree ir thermometer d:s=8:1,with backlight

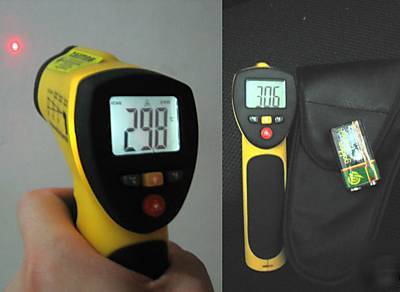

750C degree ir thermometer d:s=8:1,with backlight
1.Pricise non-contact measurements.
3.Automatic selection 0.1 /1 .
5.Automatic data hold &Auto power off.
6.The meter at 8 inches away measure 1 inch target.
1.Use extreme caution when the laser beam is turned on.
2.Do not let the beam enter your eyes,another person's eyes or the eyes of an animal.
3.Be careful not to let the beam on a reflective surface strike your eyes.
4.Do not alllow the laser light beam impinge on any gas which can explode.
1.Display:3 1/2(1999) LCD with backlight.
2.Temperature range: -50 to 760 (-58 to 1400 ).
3.Polarity: Automatic(no indication for positive polarity) Minus(-) sign for negative polarity.
4.Emissivity: 0.95 fixed value.
5.Field of View: D/S = Approx. 8:1 radio (D=distance, S=spot)
6.Diode Laser: Output<1mV,Wavelength 630~670mm,class 2(II) laser product.
8.Power Off: Automatic shut off after 7 seconds,approx.
9.Operating Temp: 0 to 50 (32 to 122 ).
10.Storage Temp: -20 to 60 -4 to 140 ).
11.Relative Hummidity: 10%~90%RH operating,<80%RH storage.
12.Power Supply: 9V battery,Neda 1604A or IEC 6LR61,or equivalent.
