> New leica builder 5" reflectorless total station survey

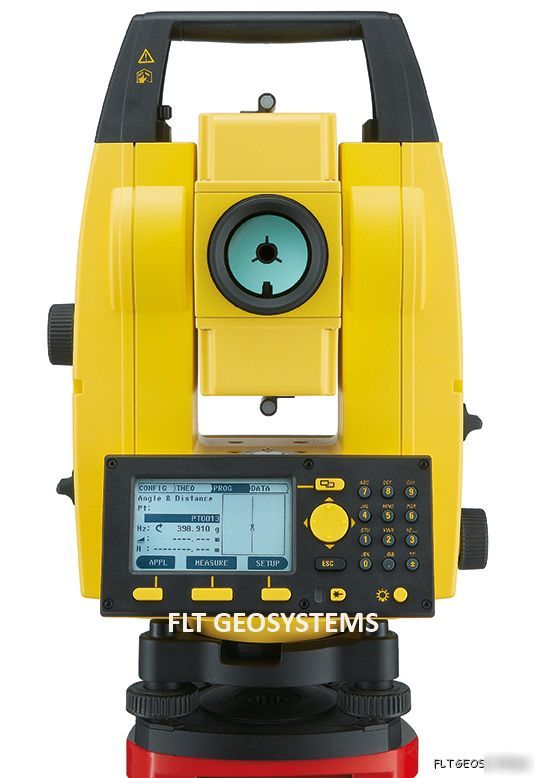

New leica builder 5" reflectorless total station survey
BRAND NEW, FACTORY SEALED, 1 yr Manufacturer's Warranty
Dual Axis Electronic Compensation.
EDM Range: 3,500m to single prism
Reflectorless EDM Range: 170m to most surfaces
Distance Accuracy: 3mm + 2ppm
Compatible to most data collectors
Internal memory: 10,000 points
GEV183 USB Download Cable included
Laser Plummet Accuracy: 1.5mm
(2) GEB121 NiMH Batteries included
Waterproof, Dustproof IP54 [IEC60529]
We are selling a 2010 Brand New, Factory Sealed Leica Builder R200Mpower 5" Reflectorless Total Station with 1 yr Manufacturer's Warranty. The Leica Builder R200Mpower is robust, reliable, precise, and exceptionally easy to use. Prism constants for any prism may be entered into this instrument for a maximum shot of 3500m to most single prisms. This instrument has a Reflectorless EDM enabling you to take measurements to most surfaces up to 170m away. Leica renown EDM technology has the smalled beam in the market, giving you peace of mind that you are shooting only what's in the cross-hairs. The R200Mpower has an RS232 Data Port that can be used with any data collector. Also included is Leica's Builder Construction Layout Software which makes staking out points, lines, or curves extremely easy. The instrument also includes a Laser Plummet and Alpha-Numeric Keyboard.
Click the link for a Builder R200Mpower brochure:
http:// /uploads/tips/documents/26.pdf
Additional Features of the Builder R200Mpower:
Graphic Leveling Aid: Fast and Convenient setup thanks to the electronic leveling aid and laser plummet
Large Alphanumeric Keyboard with LCD display
Graphic sketches: Graphically display the most significant outline points from the site plan agnification: 30x
Reflectorless Measuring Mode: with selectable visible laser allows one-man operation without a prism to difficult or dangerous-to-reach places.
Leica software includes layout, survey, as-built, area, COGO and many more applications
Multilingual Function: The Builder R200Mpower has many languages onboard to choose from. With one keystroke, the user can switch between different languages for improved efficiency and convenience.
Direct dxf: With Direct.dxf technology, data can be read directly from the instrument in dxf-format and read into AutoCAD on a PC without any intermediate steps. Coordinates and point numbers can be stored in different layers.
Builder R200Mpower 5" Reflectorless Total Station
Calibration Certficate available upon reqest
GKL112 NiMH Battery Charger
Construction Data Manager software CD
GEV189 Lemo to USB transfer cable
Leica Mini Prism and Prism Pole
1 year Manufacturer's Warranty
