Spy kgb voice recorder dvr / edic-mini tiny A45 - 1GB
Template By Froo! SPY KGB Voice Recorder DVR / Edic-mini Tiny A45 - 1Gb

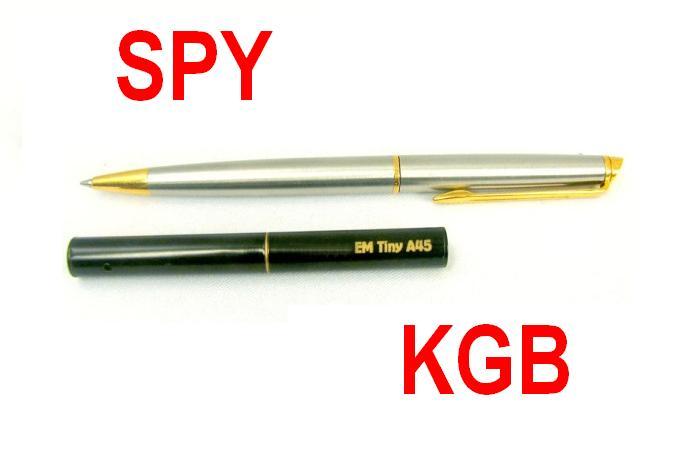

SPY KGB Voice Recorder DVR / Edic-mini Tiny
We present a miniature voice recorder A45, which is thinner, than a pen (only 9 mm in diameter).
The new recorder is produced in an aluminum cylindrical case and has simplified functionality - one control switch, operating modes are indicated with the LED.
This professional-level product has long battery life, recording time and fast and convenient transfer to computer (the recorded data is uploaded onto the PC with the help of USB cable, included into the package). Built-in highly sensitive microphone allows recording within wide frequency band.
A45 stores data in the built-in 1 Gb flash memory, which provides up to 150 hours of high-quality recording. The recorder's Li-Pol rechargeable battery provides autonomic work during 50 hours.
* Cylindrical case made of aluminium;
* Simplified interface (recording only);
* The option to use the recorder as a flah-drive;
* Timer to turn the recorder on at the preset time
* Dimensions: diameter 9mm, length 79 mm ;
* Weight (battery not included): 14 g ;
* Operating temperature range: 0 +40
* Record time into the built-in memory: 150 h;
* Built-in microphone sensitivity: up to 9 m ;
* Signal-to-noise ratio: 64 dB;
* Battery life in record mode (8 K Hz, without compression): up to 50 hours;
* Battery life in record mode with VAS (audio signals below threshold): up to 125 days;
* Battery life in stand-by mode: up to 7 months;
* Rechargeable battery capacity Li-Pol, 150 mAh;
Battery life in record model : 50h
Power supply : Rechargeable battery
Battery life in VAS model : 3000h
Battery life in stand-by model : 7 months
Frequency band : 100 Hz to 10 kHz
Sample rate : 5.5, 8, 11, 16, 22
External microphone with compressor (+/-6 dB) for the A22, B22, B30 and Solar models
Programmed External Microphone with AGC for Tiny, Tiny16
