New jet jtm-4VS mill w/x powerfeed installed 690183

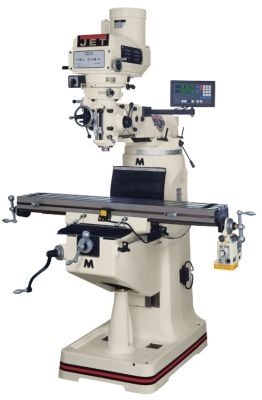

JET JTM-4VS Mill With X Powerfeed Installed
* Heavy duty splined motor drive
* One piece quill pinion and shaft
* Three stage power downfeed with automatic stop
* Tolerance test sheet included
Number Of Spindle Speeds Variable Work Table Weight Capacity (lbs.) 660 Quill Down Feed Rates (IPR) .0015 - .003 - .006 Distance Spindle To Column 19" Quill Diameter 3-3/8-in Head Movement (deg.) 90 and 176; R and L, 45 and 176; F and B Max Distance Spindle To Table 17-1/2-in Table Longitudinal Travel 34-in Table Cross Travel 12-in Collet Capacity 1/8-in - 7/8-in T-Slots Number And Size 3 and 5/8-in T-Slot Centers 2-1/2-in Travel Of Knee 16-in Travel Of Ram 14-1/2-in Table Size 9-in x 49-in
* JTM-4VS Mill with X Powerfeed Installed - 690183
* One Shot Lubrication System
