Hardinge 5C indexer - high quality hardinge indexer
HARDINGE 5C INDEXER - HIGH QUALITY HARDINGE INDEXER

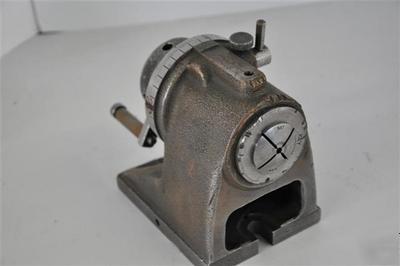

USED HARDINGE 5C COLLET INDEX FIXTURE
The Model H-4 Index Fixture is used in tool room, laboratory, inspection and development departments to provide a quick, accurate method of chucking and indexing work.
The hardened and ground spindle takes standard 1-1/16" capacity 5C HARDINGE Collets. Work employing up to the full collet capacity may be passed through the spindle. The spindle has a taper seat in the fixture frame. There is a hardened thrust washer back of the shoulder at the front of the spindle for the usual adjustments.
The index plate is hardened and ground for long life and accuracy. Each hole has an 8 included angle to match the taper of the hardened and ground index pin. This type of fixture is available with a 24 hole plate. The outside diameter of the index plate is marked for ready reference to the zero line for quick indexing.
The index pin is spring backed for quick positive location in the index plate holes.
The two long sides of the base and bottom are accurately ground parallel with the spindle. The 1/2" wide removable keys provide for parallel or right angle setting on sub-base or machine table.
