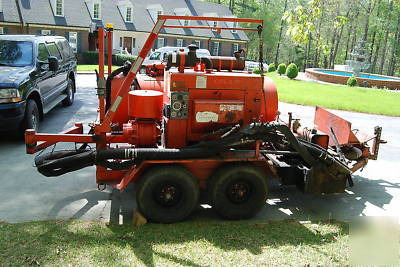

Durapatcher trailer mounted asphalt repair
http:// /watch?v=YIkALyLxCDI
requires tow vehicle with aggregate supply
1. Air is used to feed and propel aggregate and emulsion to the nozzle at up to 135 lbs. per minute. No moving parts are involved in the spray injection process.
2. Aggregate feed system can pass up to 2-1/2 inch rock and is regulated by engine rpm providing infinite adjustment for job-site conditions.
3. Boom system is ergonomically designed for easy, natural movement without fatigue.
4. Self-cleaning Vent-Flo nozzle can patch close to traffic without overspray.
http:// /pages/durapatcher-trailer.html
135 lbs./min, 1 4-1/2-inch wet or dry aggregate
450 cfm with 7 psi @ 1500 rpm
Direct driven from engine flywheel

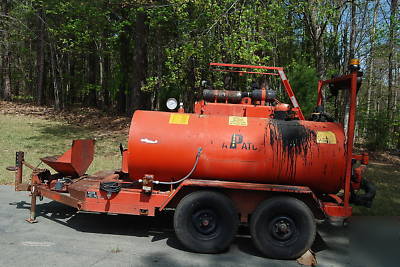

Emulsion - 250 gallons, 200 psi working pressure R-15 insulation
- Two 1500 watt heat blankets with thermostats
Clean-Out - 15 gallon, 200 psi working pressure

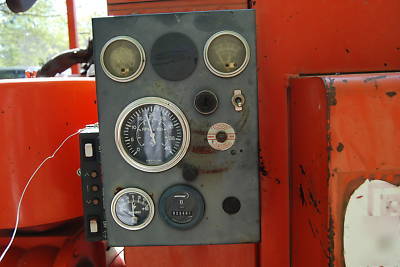

Emulsion and rock flow, engine rpm, horn
Dual axle, leaf spring (12,000 lb.)
(4) 225/75R15 Load D tires

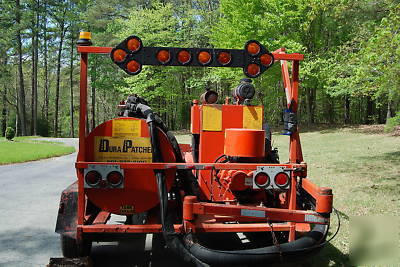

Tail, brake, directional, strobe and arrowboard lights
96 wide x 194 long x 91 high
