Robot R502 food processor, bowl, continuous feed attach
Food Processor, Bowl, Continuous Feed Attachment and 2 Plates, 5.5 Quart, 2 Speed, 3 HP
1 year parts and labor warranty.
Commercial Food Processor, bowl attachment, continuous feed attachment & 2 plates, 5.5 qt. capacity, metal vegetable preparation attachment, two speed 850-1725 RPM, 120v/60/1-ph, 15 amps, 3 HP
* Prepare 2000-plus servings in 2 1/2 to 3 hours
* Vegetable prep attachment designed for quality continuous feed slicing, dicing, shredding, grating, french fry, and julienne. Accommodates 39 different processing discs.
* Bowl attachment designed for mixing, chopping, pureeing, and blending.
* Fan-cooled, 3 HP three phase motor with magnetic safety switch. Push button On-Off , High-Low switch.
* Metal motor support with polycarbonate motor base.
* Large range of processing discs.
* Large feed pusher assembly and two deep feed openings on the all metal continuous feed attachment.
* 5.5 Qt Stainless Steel Bowl attachment with stainless steel S blade.
* Attachments easily removed for superior cleanability.
* Unit base uses minimal counter space (14 1/4 x 14 1/2 ).
* Standard package includes two processing discs (28064 & 28058) and one disc rack.

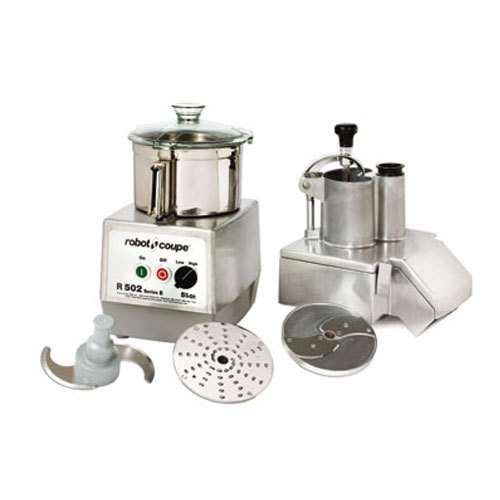

* STANDARD MODEL: includes motor base unit, all metal continuous feed attachment, discharge plate, one 1/8 (3mm) slicing disc, one 1/8 (3mm) medium grating disc and 5.5 Qt. stainless steel bowl with handle and stainless steel smooth edge S blade
* ELECTRICAL REQUIREMENTS: 208-240V, 60Hz, 2.6/2.8 Amps, three phase. NEMA L15-20P
