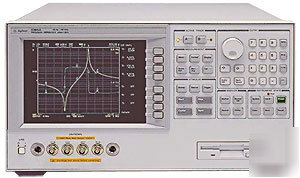

Agilent/hp 4294A impedance analyzer
Description:The Agilent 4294A precision impedance analyzer is an integrated solution for efficient impedance measurement and analysis of components and circuits. The Agilent 4294A covers a broader test-frequency range (40 Hz to 110 MHz) with Basic impedance accuracy:+/-0.08 %. Excellent High Q/Low D accuracy enables analysis of low-loss components. The wide signal-level ranges enable device evaluation under actual operating conditions. The test signal level range is 5m V to 1 Vrms or 200 uA to 20m Arms, and the DC bias range is 0 V to +/-40 V or 0m A to +/-100m A. Advanced calibration and error compensation functions eliminate measurement error factors when performing measurements on in-fixture devices. The Agilent 4294A is a powerful tool for design, qualification and quality control, and production testing of electronic components. Circuit designers and developers can also benefit from the performance/functionality offered. Specifications:
Basic impedance accuracy: +/- 0.08 %
40 Hz to 110 MHz, 3 m ohm 500M ohm
