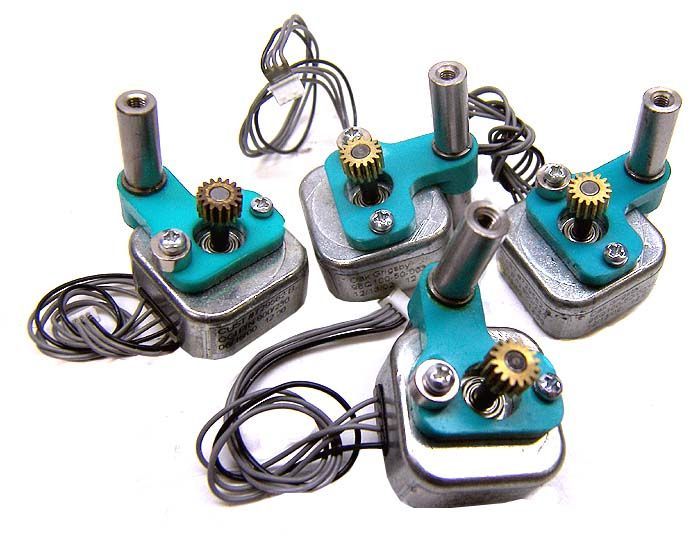

Lot 4 optical encoder oak grigsby ogi robotic hobby cnc
LOT 4 OPTICAL ENCODER OAK GRIGSBY OGI ROBOTIC HOBBY CNC
Model No. 96Q100-50-00355 - Part No. 900/230
Oak Grigsby custom model # 96Q100-50-00355
Two channel quadrature output
Input voltage is 5V +/- .25V
TTL output circuitry with onboard Schmitt triggers for a sharp square wave output
Bearings not sleaves on shafts
Bracket and gear can be removed for your own application
100 pulses per revolution (ppr)
The OakGrigsby 900 Series is well suited for industrial motion and position sensing, their low profile and high resolution also make them ideal for panel mounted applications. A two-channel quadrature code allows the encoder to detect the direction and magnitude of the input motion applied to its shaft.
