Linemaster hercules 574-dw footswitch foot switch

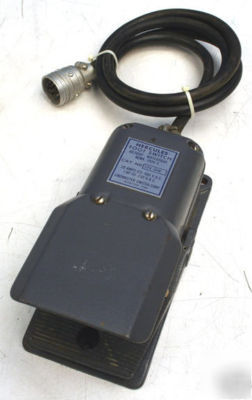

Linemaster Hercules 574-DW Footswitch Foot Switch
115-230 Volts AC, 1 horsepower / 125 480 Volts AC, 20 Amps
Used, removed from service, Oiltight, watertight, NEMA Type 4
* Treadle and base constructed from cast iron for strength and durability.
* Protected by a strong cast aluminum shield.
* Painted Alert Orange. (Custom colors available upon request)
* Single 3/4 - 14 N.P.T. threaded conduit entry is standard.
* Oversized O and OX shield models accept oversized safety shoes and metatarsal foot guards. The OX shield has an additional 3/4 (19.1 mm) opening height as compared to the O shield.
* Special twin and triple models available to the O.E.M on special order.
* In all Maintained Contact models the release is accomplished by simply pressing the latch with a light forward movement with the toe. The release is placed under the full shield so falling objects cannot easily release it.
