Hp 4192A impedance analyzer lcr loaded with fixtures

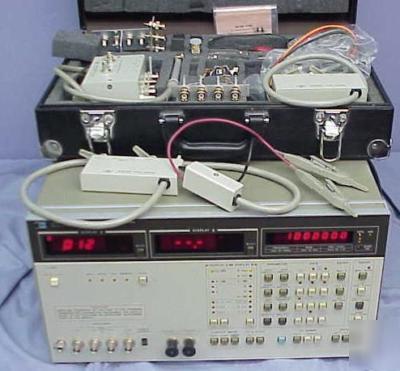

HP/Agilent 4192A LF Impedance Analyzer, 5 Hz to 13 MHz. Clean fully tested unit works great.
Offered with the HP 16097A Accessory Kit case LOADED with fixtures and extras.
Sold with a 7 Day Right of Inspection.
We took it in trade and are offering it complete as we received it.
The 4192A LF impedance analyzer performs both network analysis and impedance analysis
on such devices such as telecommunication filters audio/video electronic circuits, and basic
electronic components. Both floating and grounded devices can be tested.
5 Hz to 13 MHz variable frequency
Swept measurement capability
Gain-phase measurements: amplitude, phase, group delay
Floating or grounded devices
Impedance measurement: |Z|, |Y|, Theta, R, X, G, B, L, C, D, Q, Delta, Delta%
2 Each HP 11095A 600 Ohm Feed Thru Termination
2 Each HP 11094B 75+/-0.15 Ohm Feed Thru Termination
2 Each HP 11048C 50+/-0.10 Ohm Feed Thru Termination
3 Each Various Quad BNC Strip Fixtures
2 Sets of 2 Grey Plastic Spring Clip Fixtures
Dual Alligator Clip to Connector Accessory
Plastic Vial of spare gold probe tips
2 Spare 125mA plug in protector fuses (in small plastic bag)
HP 16097A Foam storage case with keys
Sold with a 7 day inspection return privilege if not happy.
