New beam load cell transducer techniques ebb-1 1 kg

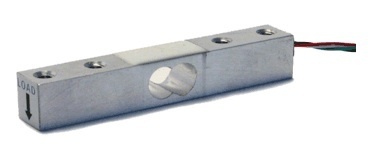

These are EBB-1 bending beam load cells made in the USA by Transducer Techniques, brand new! Capacity is 1 kg.
From the Transducer Techniques website,
"The EBB Series is a economical low capacity bending beam load cell suitable for use in a variety of industrial and OEM force measurement and weighing applications. It is made of an aluminum alloy and comes in 1, 2, 5 and 10 kilogram ranges."
I have a few of the 2 and 10 kg EBB load cells in addition to the EBB-1 cells listed here. Please check my other listings.
Rated Output (R.O.): 0.5 mV/V 10%
Nonrepeatability: 0.05% of R.O.
Compensated Temp. Range: 14 F to 104 F
Safe Temp. Range: 14 to 140 F
Temp. Effect on Output: 0.01% of Load/ F
Temp. Effect on Zero: 0.01% of R.O./ F
Terminal Resistance: 350 ohms nominal
Excitation Voltage: 5 VDC (8 VDC max.)
Cable: 6", 30 AWG pigtail leads
